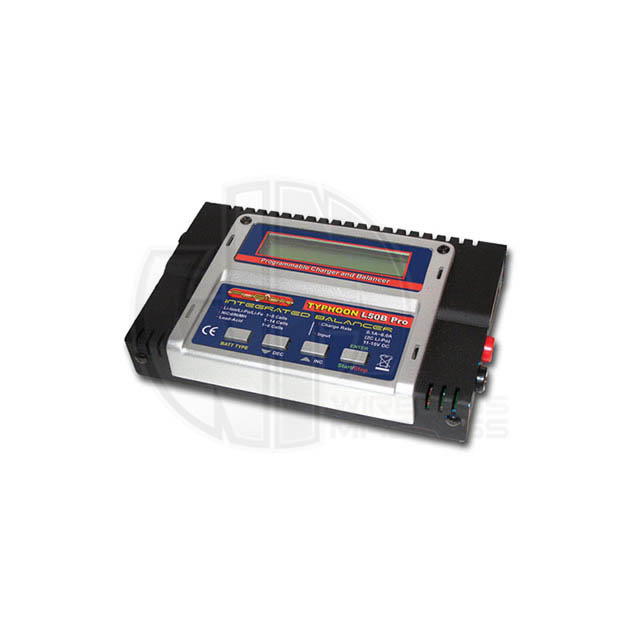

Fusion L50B Pro Typhoon 12v DC Balance Charger
Features
- 2 - line, 16 character, blue backlit, LCD makes the screen extremely clear and legible
- Built-in intelligent balancing circuit is designed to individually balance each cell on the connected Lithium battery pack within the tolerance of 5mV during charge or discharge
- Balancing plug adaptor boards are supplied to suit JST XH, FlightPower and Thunder Power batteries. Optional adaptors for Polyquest are available
- Voltage monitoring feature shows each actual cell voltage on the screen during balancing
- Various warning messages for incorrect input voltage, wrong connections, unsuitable battery condition and reverse polarity on output
Specifications:
Input Voltage - 11~15V DC
Battery Type & Cells - 1~5 cells Li-Po, Li-Ion or Li-Fe, 1~14 cells NiCd or NiMh, 1~6 cells lead acid batteries
Battery Capacity - 100mAh ~ 6000mAh adjustable only for Li-Po, Li-Ion, Li-Fe
Charge Rate - 0.1A ~ 6A Adjustable in 100mA steps (max 50W)
Trickle Charge Rate - 0 ~ 200mA
Balancing Max. Current - 280mA (Tolerance 5mV during charge)
Charge Termination - 'Zero Delta V' peak detection for NiCd/NiMh 'Constant current/constant voltage' for Li-Ion/Po Li-Fe and Pb
Delta Peak Sensitivity - 5mV ~ 25mV for NiCd & 3mV ~ 25mV for NiMH (per cell)
Note: 12v power supply will be required and battery connection leads are not included
