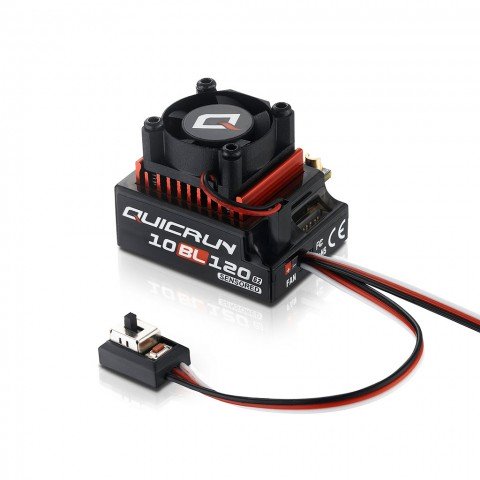

Hobbywing QuicRun 120A 10BL120 ESC G2 Waterproof Brushless Electronic Speed Controller - HW30125002
Hobbywing QuicRun 120A 10BL120 ESC G2 Waterproof Brushless Electronic Speed Controller
Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
Efficient cooling system
The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.
Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.
High protection level, all-weather operation
The IP-67 waterproof Rating guarantees excellent waterproof and dustproof protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Features
- High Reliability & Durability
- Upgraded BEC output voltage and current
- Adjustable boost and turbo timing
- Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, overload protection
- Supports firmware upgrade of ESC (Multi-function LCD program box need to be purchased)
Specifications:
Scale - 1/10th
Brushed/Brushless - Brushless
Sensored/Sensorless - Sensorless/Sensored
Waterproof - Yes
Cont./Peak Current - 120A/760A
Input Voltage - 2-4S LiPo
BEC Output - 6V/7.4V@5A
Input Wires - Black-14AWG-200mm*2
Output Connectors - 4mm Gold (female)
SET Button on ESC - Not Supported
LED Program Box - Supported
LCD G2 Program Box - Supported
OTA Programmer - Supported
Program Port - Separate Program Port
Dimensions - 52.9 x 39.8 x 38.2mm
Weight - 119g (Including wires & connectors)
Applications
Motors - SL BL Motors/SD BL Motors (only in sensorless mode)
Vehicles - 1/10th Short course truck, Monster truck
KV Rating/T Count - 3652、3660 Size Motor
