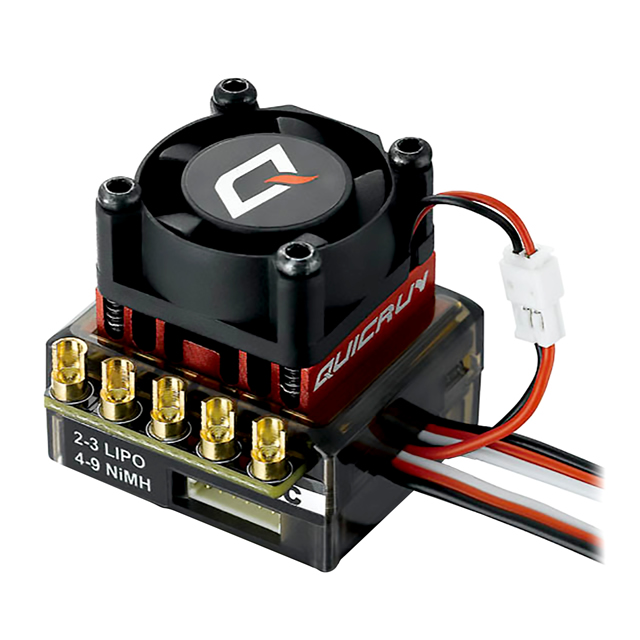

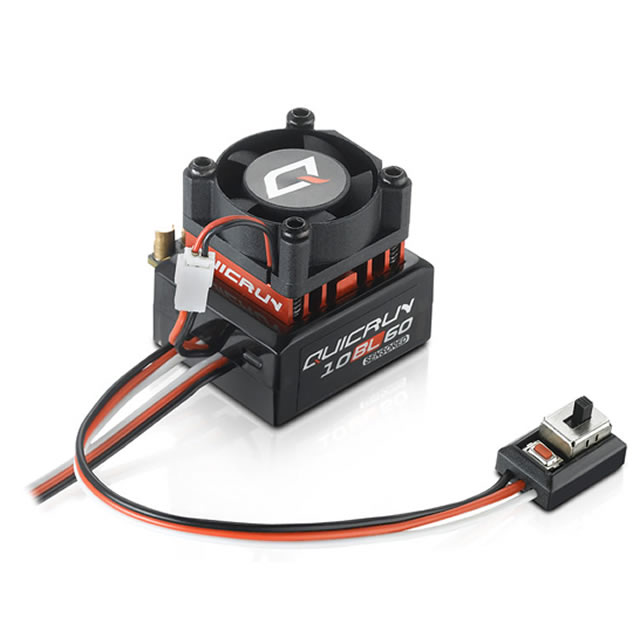

Hobbywing QuicRun 60A Brushless ESC 10BL60 Sensored Speed Controller - HW30105060003
Hobbywing QuicRun 60A Brushless ESC 10BL60 Sensored Speed Controller
The QuicRun 10BL60 sensored ESC is specially designed for new beginners and intermediate modellers. This speed controller is designed for practice and daily training of 1/10th, 1/12th scale touring cars, buggies, F1 and draft cars as well as 1/10th scale rock crawlers.
Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRUN 10BL60, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminium heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.
With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
Features
- High Reliability & Durability
- Efficient Cooling System
- Easy Operation
- Compact Design & SD/SL Dual Mode Supported
- Single-button Programming & Factory Reset
Specification:
Scale - 1/10th & 1/12th
ESC Type - Brushless
Motor Type - Sensored or Sensorless Brushless
Waterproof - No
Current - 60A (Burst 380A)
Battery Input - 4-9 cells NiMh or 2-3S LiPo
BEC Output: Switch Mode - 6V/2A
Input Connectors - None installed
Output Connectors - None installed
Fan Size - 25 x 25 x 10mm
Fan Voltage Range - 5-8.4v
Size - 33 x 28 x 31.5mm
Weight - 59g
