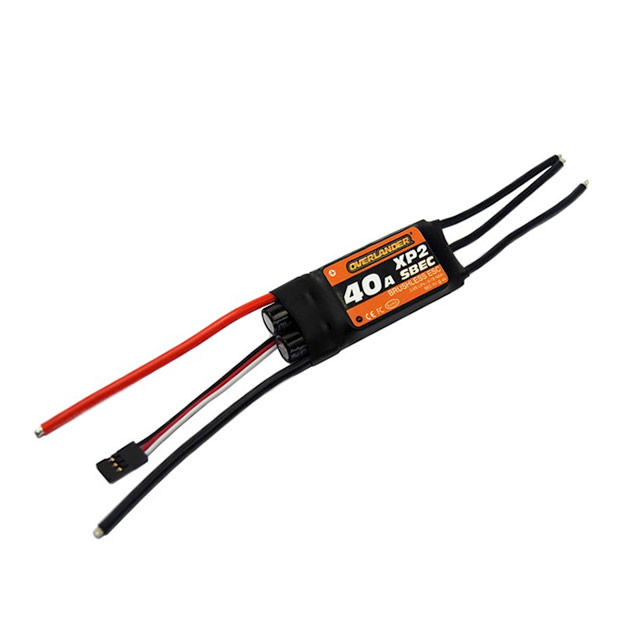

Overlander ESC XP2 40A SBEC Brushless Speed Controller for Planes and Helis - OL-2612
Click Image for Gallery
Overlander ESC XP2 40A SBEC Brushless Speed Controller for Planes and Helis
This series of speed controllers from Overlander have high technology and perfect function. Aiming at none-hall direct current brushless motors, you can set several parameters through program card (not included) on ESC which are convenient and easy to use.
Features
- Full protection feature including low voltage, over-heat, throttle signal lost, start-up protection and self-check
- Sensorless design for use with Planes and Helicopters
- Battery and motor connectors not fitted so you can fit connectors of your choice Excellent start-up performance, great throttle linear and quick throttle response
- Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles)
- Easily configured with program card (Not Included)
- System can automatically detect throttle neutral point
- 3 timing modes can match different motors
- 3 modes of start force adjustment
- Governor mode for heli
- Reverse motor direction
- Low resistance PCB
Specification:
Input Voltage - 2-6 cell Li-Po (5-18 NiMh)
Continuous Current - 40A (Burst max 55A 10secs)
BEC Output - 4A/5V
Motor Wire - 16AWG
Battery Wire - 14AWG
Dimensions - 72 x 25 x 8 mm
Weight - 42g
