Hobbywing QuicRun 60A ESC 1060 Waterproof Brushed SBEC LiPo Compatible - HW30120060007

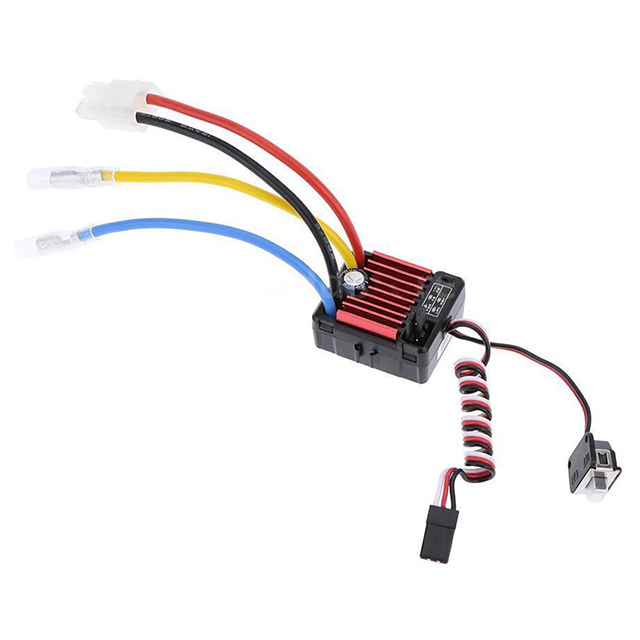

Hobbywing QuicRun 60A ESC 1060 Waterproof Brushed SBEC LiPo Compatible
The QuicRun WP 1060 is specially designed for new beginners and intermediate modellers. This speed controller is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.
Reliable hardware combined with advanced software technology allows the QuicRun WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.
The waterproof and dust-proof design allows the QuicRun WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.
Suitable for 1/10 Touring Car, Buggy, Short Course, Truck, Monster, Truggy, Rock Crawler and Tank.
Specification:
Compatible Motors - Brushed Motors
Peak Current - 60A/360A
Input - 2-3S LiPo/6-9 Cells NiMH
BEC Output - Switch Mode:6V/3A
Motor Limit - 2S LiPo or 6S NiMh 540 or 550 Size Motor: 12T or RPM 30000 - 7.2V
Motor Limit - 3S LiPo or 9S NiMh 540 or 550 Size Motor: 18T or RPM 20000 - 7.2V
Input Wires - Red-16AWG-100mm/Black-16AWG-100mm
Output Wires - Blue-16AWG-100mm/Yellow-16AWG-100mm
Input Connectors - Standard Tamiya Connector
Output Connectors - 4.0 Bullet Connectors (Female)
Size - 36.5x32.0x18.0mm
Weight - 39g
