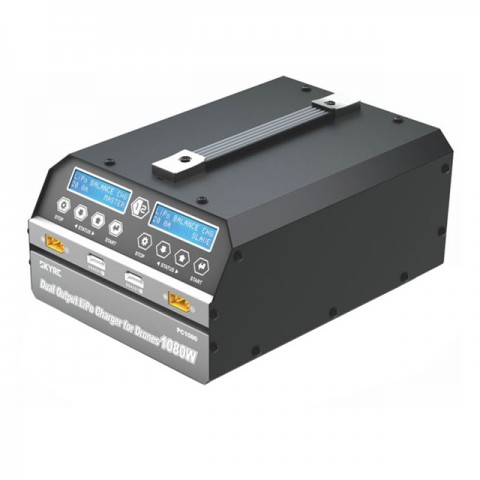

Sky RC PC1080 Dual Balance Charger/Discharger for LiPo and LiHV Batteries - SK-100124
Sky RC PC1080 Dual Balance Charger/Discharger for LiPo and LiHV Batteries
SkyRC PC1080 is a dual channel 6S LiPo charger for industrial application drones. It is reliable, safe and easy to operate while with comprehensive functionality, like battery voltage meter, internal resistance meter, LiHV charging mode, also the time saving synchronization mode.
Sophisticated industrial and mechanical design, optimises the space. Selecting components from well-known brands, guarantees stable quality and durability. Using advanced 32bits high speed CPU from STMicroelectronics, processing capability improves 20 times.
By embedding the XT60 battery connector in the charger, it gets more convenient & safe for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.
Features
- Battery voltage meter
- Battery internal resistance meter
- Adjustable charging current
- Master-Slave mode
- LiPo and LiHV balance charge
- Balance, storage and fast charge
- Firmware update available via USB port
- Current Log that records the charging current of the last use
- Synchronous Mode which can synchronise chargers with a data cable via the master channel
- Short circuit, reverse polarity and over temperature protection
Specifications:
Input Voltage - 100-240V
Output Power - 1080W (540W x 2)
Discharge Power - 100W (50W x 2)
Charge Current - 1-20A x 2
Balance Current - 1.2A
Battery Type - LiPo/LiHV
Battery Cell Count - 6S
Modes - Balance, Storage, Charge Mode
Size - 272x202x118.6mm
Net Weight - 4.88kg
